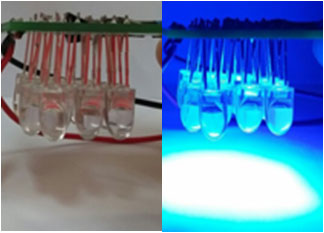

Dome Lamp
FEATURES
- Highly directive angle
- High power
- Clear silicone lens
- Long life
- Wavelength: 365 nm ~ 420 nm
APPLICATIONS
- Epoxy/resin cure
- Horticulture
- Printing
- Inspection irradiation light source
- Molding coating joining by resin
- Medical instrument
- Other IT industry process
*Scroll horizontally to see more
| Parts No. |
Wavelength (nm) |
View Angle (deg ) |
Applications |
Applications |
Applications |
Data Sheet |
Request Quote |
| LP-D365 |
365 |
10/15/35 |
Cure |
Printing |
Inspection |
|
|
| LP-D395 |
395 |
10/15/35 |
Coating |
Printing |
Cure |
|
|
| LP-D405 |
405 |
10/15/35 |
Horticulture |
Bio |
Sensing |
|
|
| LP-D420 |
420 |
10/15/35 |
Horticulture |
Bio |
Sensing |
|
|

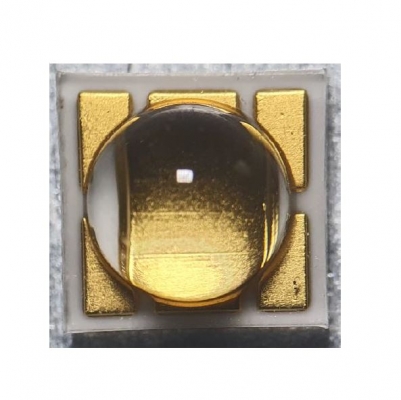

3535 Size UV SMD
FEATURES
- Compact size SMD package: 3535
- View angle: 25 deg and 120 deg
- Variable power range
- Wide range of wavelengths
APPLICATIONS
- Sterilization
- Medical instrument
- Analytical instrument
*Scroll horizontally to see more
| Parts No. |
Wavelength (nm) |
Radiant Power (mW) Min |
Radiant Power (mW) Typ |
Radiant Power (mW) Max |
Current (mA) |
Data Sheet |
Request Quote |
| LSP-S275-3 |
275 |
1 |
3 |
- |
20 |
|
|
| LSP-S275-20 |
275 |
20 |
22 |
- |
150 |
|
|
| LSP-S310-5 |
310 |
1 |
5 |
- |
20 |
|
|
| LSP-S310-22 |
310 |
20 |
22 |
- |
150 |
|
|

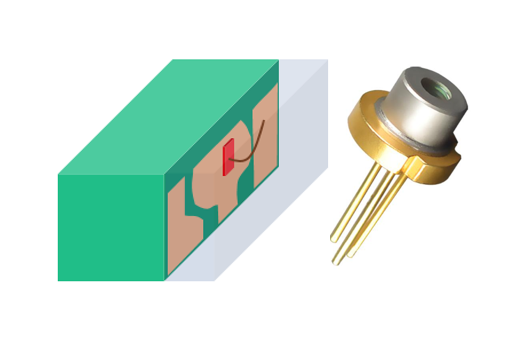

Laser Diode SMD
FEATURES
- Small size SMD package: 1608
- Typical peak wavelength: 655 nm
- Standard light output power of 5 mW
- High temperature operation
APPLICATIONS
- Horticulture
- Medical instrument
- Analytical instrument
*Scroll horizontally to see more
| Parts No. |
Wavelength (nm) |
Output Power (mW) |
Beam Divergence θH/θV (deg) |
Threshold Current (mA) |
Operating Voltage (V) |
Data Sheet |
Request Quote |
| LP-LD660 |
660 |
5 |
9/30 |
16 |
2.2 |
|
|

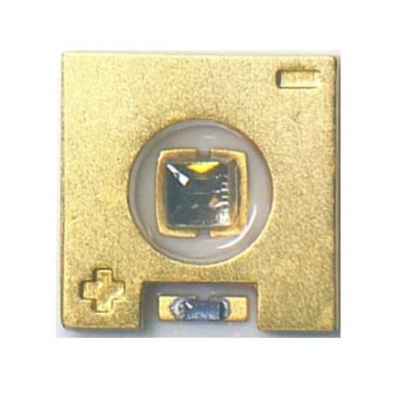

IR SMD
FEATURES
- High power
- 3535 ceramic SMD
- Narrow view angle
- High temperature operation
APPLICATIONS
- Security
- Horticulture
- Medical
*Scroll horizontally to see more
| Parts No. |
Wavelength (nm) |
Voltage (V) |
Current (mA) |
Radiant power (mW) |
View Angle (deg) |
Data Sheet |
Request Quote |
| LP-S730-LC-350 |
730 |
2.5 |
350 |
333 |
55 |
|
|
