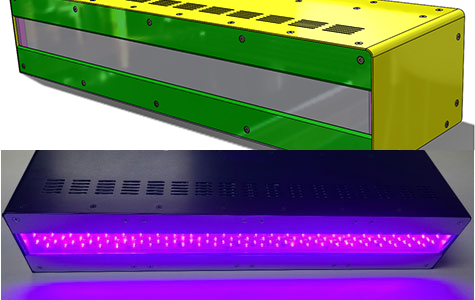

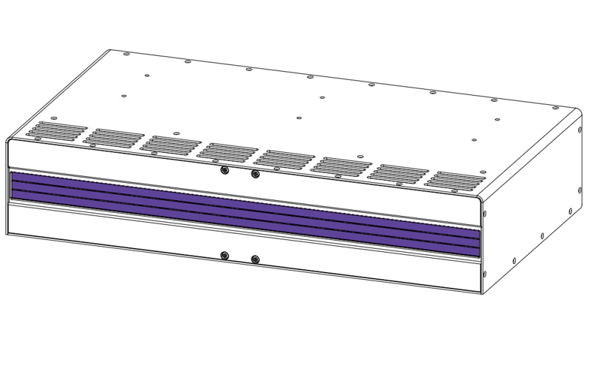

Line Type Modular Irradiator

FEATURES

  • Highly reliable and low cost
  • Wide range of irradiation intensity
  • Higher uniformity within working area
  • Extendable working area by array configuration
  • Available wavelengths: 365 nm and 395 nm
  • Lower maintenance cost

APPLICATIONS

  • Curing system
  • Exposure light source
  • Adhesion process

*Scroll horizontally to see more

Parts No. Wave length (nm) Irradiation Power (mW/cm2) Irradiation Area (cm2) Working Distance (cm) Uniformity (%) Dimension/Weight (cm)/(kg) Data Sheet Request Quote
LS-L-AC365 365 250 50*2.5 5 85 53X11X16(H)/ 6
LS-L-AC395 395 350 50*2.5 5 85 53X11X16(H)/ 6
LS-L-SM365 365 2,500 50*2.5 5 90 53X11X32(H)/ 12
LS-L-SM395 395 3,500 50*2.5 5 90 53X11X32(H)/ 12

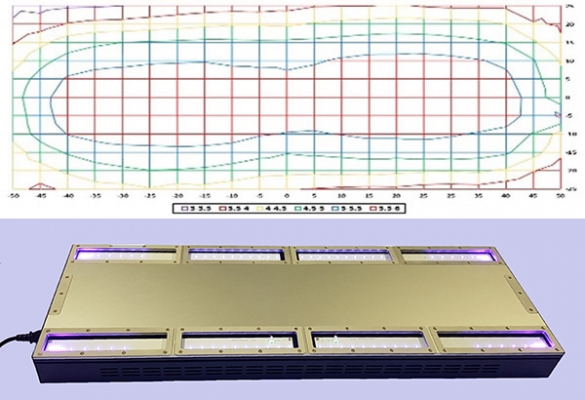

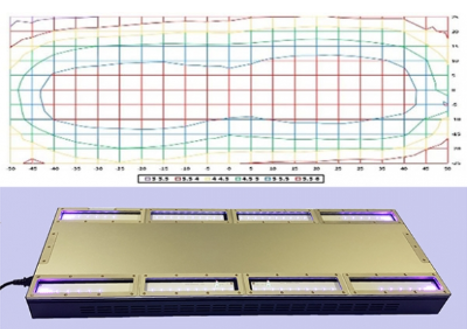

Surface Modular Inspection Irradiator

FEATURES

  • Flicker free irradiation
  • 365 nm wavelength
  • Wide range of irradiation intensity
  • Large irradiation area, 100X50 cm2
  • Irradiation area expandable by multi array configuration
  • High irradiation uniformity
  • Low operating temperature

APPLICATIONS

  • Crack/Scratch detection
  • Fluid leaks detection
  • Contaminating detection

*Scroll horizontally to see more

Parts No. Wave length (nm) Irradiance (µW/cm2)/60cm Irradiation Area (cm2) Working Distance (cm) Uniformity (%) Dimension/Weight (cm)/(kg) Data Sheet Request Quote
LS-S-SM365 365 4,500 50X100 Extensible 60 90 90X30X6(H)/5
LS-S-SM395 395 5,500 50X100 Extensible 60 90 90X30X6(H)/5
